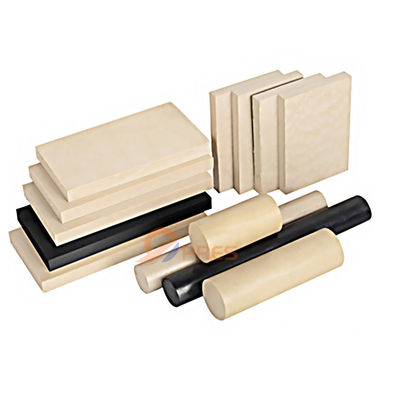

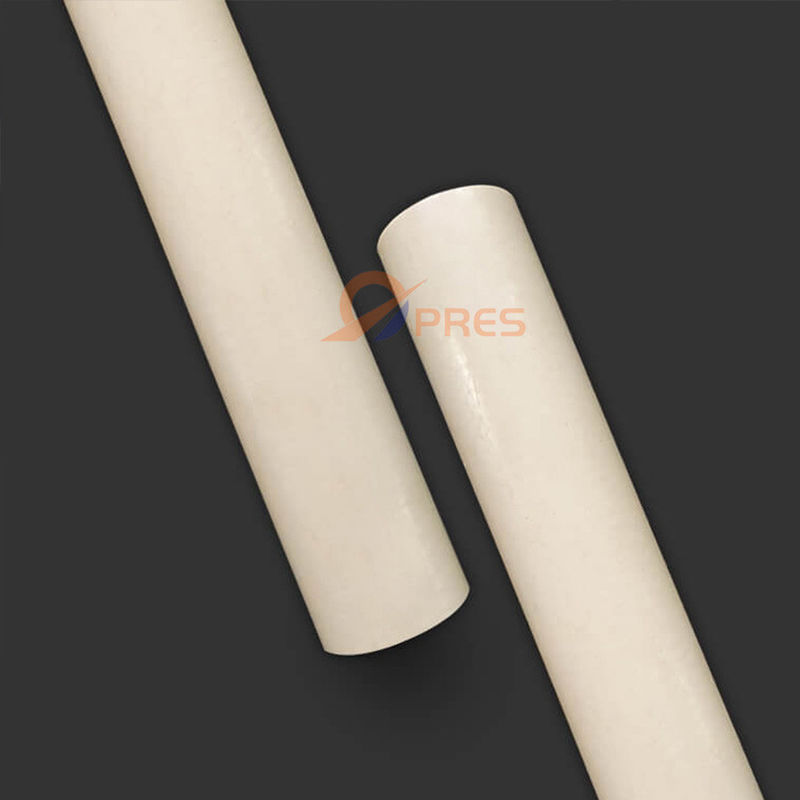

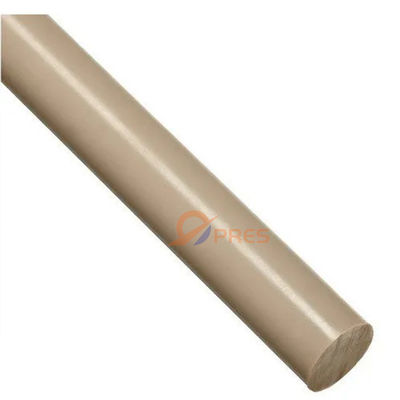

High Precision Engineering Plastic Resin PEEK1000 Rod 6mm-120mm
| Place of Origin | China |
|---|---|
| Brand Name | PRES |
| Certification | ROHS REACH |
| Model Number | PEEK 1000 |
| Minimum Order Quantity | 1KG |
| Price | 50-65 |
| Packaging Details | Inner In Poly Bags,wooden case |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 250Tone per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness | Custom,6-120mm | Material | PEEK Resin |
|---|---|---|---|
| Color | Natural,Black,Brown Grey/black,Natrual/Black/Khaki | Density | 1.31 |
| Product Name | High Precision Self Lubrication Plastic Peek1000 Plate Plastic Sheet | Feature | High Wear Resistance,abrasion Resistance,Durable,260℃ Working Temperature |
| Application | Machine Manufacturing Industries,Auto Industry,fabricate Items,Engineering | Sample | To Be Negotiated,free Sample |
| Shape | Sheet\board\rod\plate\bar\strips\shaped Parts,Flat Panel,As Per Your Demand | Packing | Inner In Poly Bags,wooden Case |
| Highlight | PEEK1000 Engineering Plastic,PEEK1000 Rod,PEEK1000 resin rod |
||
Product Description
Engineering PEEK plastic high performance PEEK rod
PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250° C) without permanent property
degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments.
PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)
3.Self-lubricity (low coefficient of friction and wear resistance)
4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
| PEEK Parameters | |||||
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
| PEEK SHEET&RODS Standard SIZE | ||||
| Item | Thick/Dia(mm) | Width/Length(mm) | Density (g/cm3) | Color |
| PEEK resine sheet | 6-120 | 620X1240 | 1.31 | Natural, Black |
| PEEK resine rod | 6-100 | 1000 | 1.31 | Natural, Black |
| PEEK+GF Sheet | 6-100 | 620x1240 | 1.51 | Natural, Black |
| PEEK+GF Rod | 10-50 | 1000 | 1.51 | Natural, Black |
