10%-30%Carbon fiber reinforced Peek sheet for CNC Machining
| Place of Origin | China |
|---|---|
| Brand Name | Pres |
| Certification | ROHS REACH |
| Model Number | PEEK 1130 |
| Minimum Order Quantity | 1KG |
| Price | 58USD-96USD per KG |
| Packaging Details | inside pp pearl cotton, outside wooden box |
| Payment Terms | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 250Tones per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Chemical Resistant/High Flow/High Stiffness/High Strength/low Friction/semi Crystalliine | Product Name | Carbo Fiber PEEK Sheet |
|---|---|---|---|
| Density | 1.4g/cm3 | Tensile Strength Break 23°C | ≥265MPa ISO 527 |
| Application | Aerospace, Automotive, Medical, Electronics, Etc. | Color | Black |
| Thickness | 6mm-120mm | Flame Retardant | UL94 V-0 |
| Compressive Strength 3°C | Up To 230℃ Mpa ISO640 | Material | PEEK, 10%-30% Carbon Fiber |
| Melting Point | 343℃ | Width | 600mm/1250mm |
Product Description

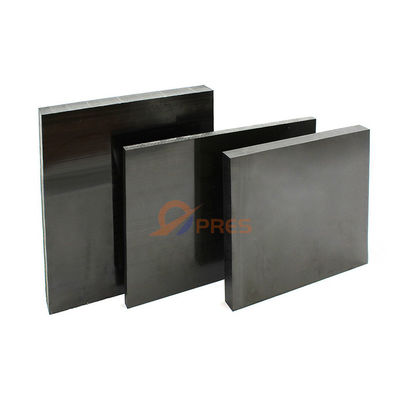

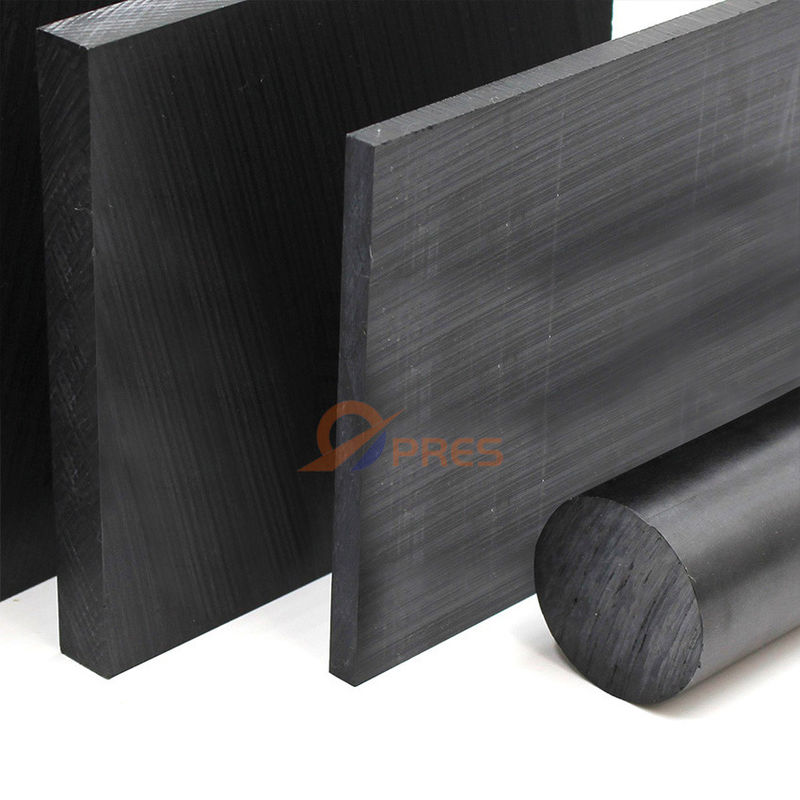

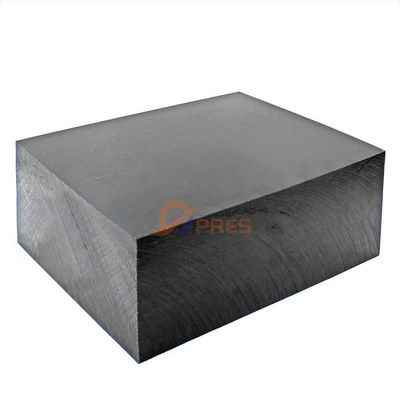

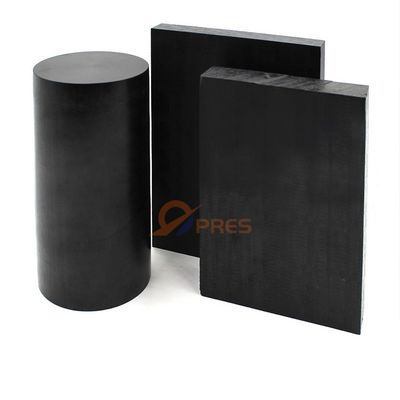

10%-30%Carbon fiber reinforced Peek sheet for CNC Machining
Carbon fiber reinforced PEEK board is a high-performance engineering material, particularly suitable for machining. It is based on PEEK and reinforced with carbon fiber, significantly improving the strength, rigidity, and wear resistance of the material. This type of board exhibits good stability and processability during machining, and can be accurately processed into various complex shapes. It has characteristics such as high temperature resistance, corrosion resistance, and fatigue resistance, and can be used for a long time in harsh working environments. Widely used in aerospace, automotive manufacturing, electronics and other fields, it provides a reliable material selection for the manufacturing of high-performance components.
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
Our Advantages:
1. Prompt delivery and consider services
2. Competitive price and high quality control
3. ISO9001:2008/QS9000/SGS approved
4. OEM&ODM accepted/ Cut Arbitrarily
5. Customers’ 2D or 3D drawings or samples are welcomed
6. 10 years experience focus on manufacturing PEEK sheet and Tube
One stop PEEK service: From granual to shape,from shape to parts
Quality control in every steps
