ROHS High Temperature Engineering Plastics Glass Fiber GF30 PEEK Plate Sheet
| Place of Origin | China |
|---|---|
| Brand Name | Pres |
| Certification | ROHS REACH |
| Model Number | G1030 |
| Minimum Order Quantity | 1kg |
| Price | 60USD-95USD per KG |
| Packaging Details | inner pp cotton，Outer wooden case |
| Payment Terms | D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 250Tones per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PEEK+Glass Fiber | Density | 1.51g/cm3 |
|---|---|---|---|
| Tensile Strength | 175MPa | Elongation At Break | 2.7% |
| Thickness | 1mm-60mm | Width | Customization |
| Length | 1240mm/customization | Reinforcement | Glass Fiber |
| Form | Sheet | Color | Natural/Black/customization |
| Flammability | UL94 V-0 | ||
| Highlight | ROHS high temperature engineering plastics,GF30 PEEK high temperature engineering plastics,Glass Fiber peek plate |
||
Product Description
Heat Temperature Resistance Glass Fiber Plastic PEEK Sheet
Glass Fiber Filled PEEK Advantage:
Compared with unfilled PEEK,this 30% glass fiber reinforced PEEK material exhibits increased mechanical strength and high rigidity.Plus, improved creep strength and dimensional stability are delivered by the 30% glass fiber filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.PEEK GF30 is widely used in the buyer cases, which has a marked compressive strength requirement on the product designing.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
PEEK SHEET SPECIFICATION
| PEEK SHEET&RODS Standard SIZE | ||||
| Item | Thick/Dia(mm) | Width/Length(mm) | Density (g/cm3) | Color |
| PEEK resine sheet | 6-120 | 620X1240 | 1.31 | Natural, Black |
| PEEK resine rod | 6-100 | 1000 | 1.31 | Natural, Black |
| PEEK+GF Sheet | 6-100 | 620x1240 | 1.51 | Natural, Black |
| PEEK+GF Rod | 10-50 | 1000 | 1.51 | Natural, Black |

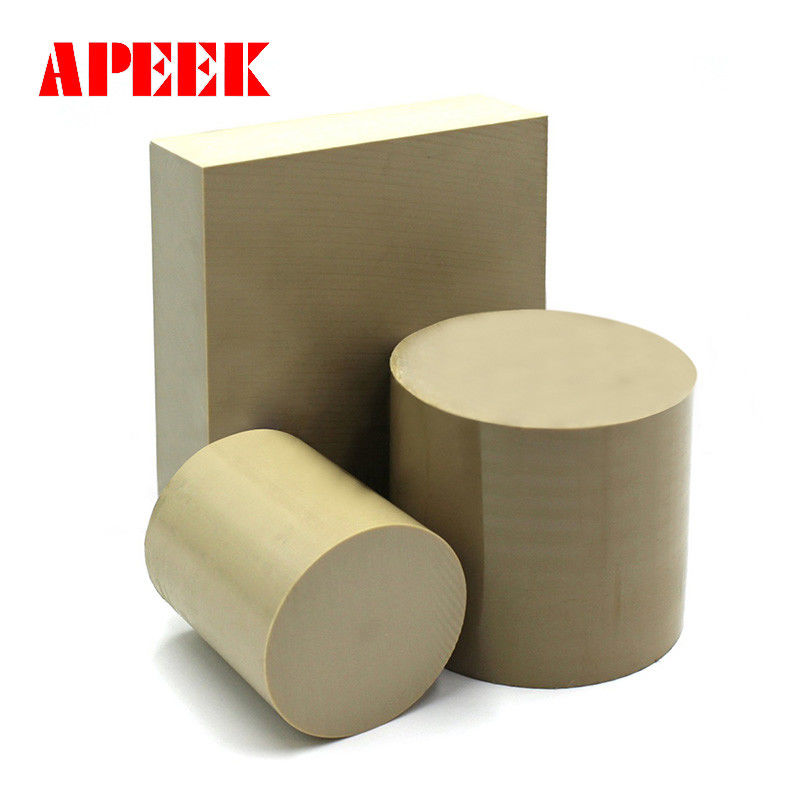

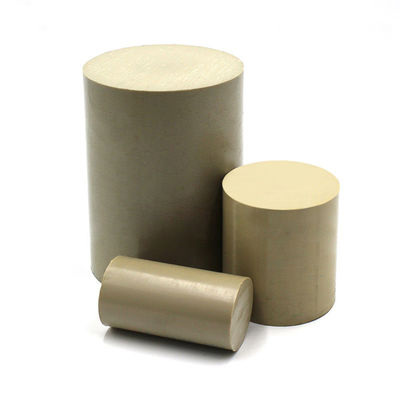

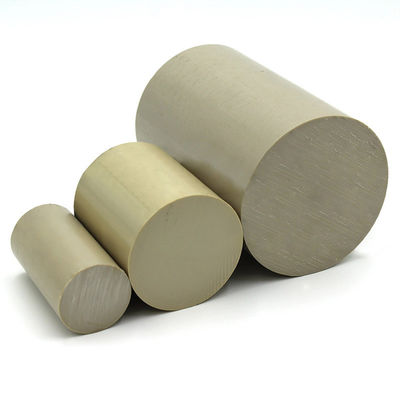

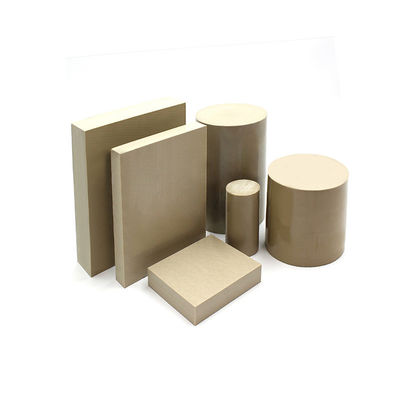

Images:
